How to use:
Before charging:
Check that your battery parameters are compatible with the charger.
When charging:
1.Connect the red clip to the positive terminal (+) and the black clip to the negative terminal (-).
2.Connect the charger to AC power and the charger will start working.
3. When the battery is fully charged, the battery bar on the screen will be in the "FUL" state.
Charging is complete:
It is highly recommended to keep charging for 1-2 hours and then remove the charger.
Product Features:

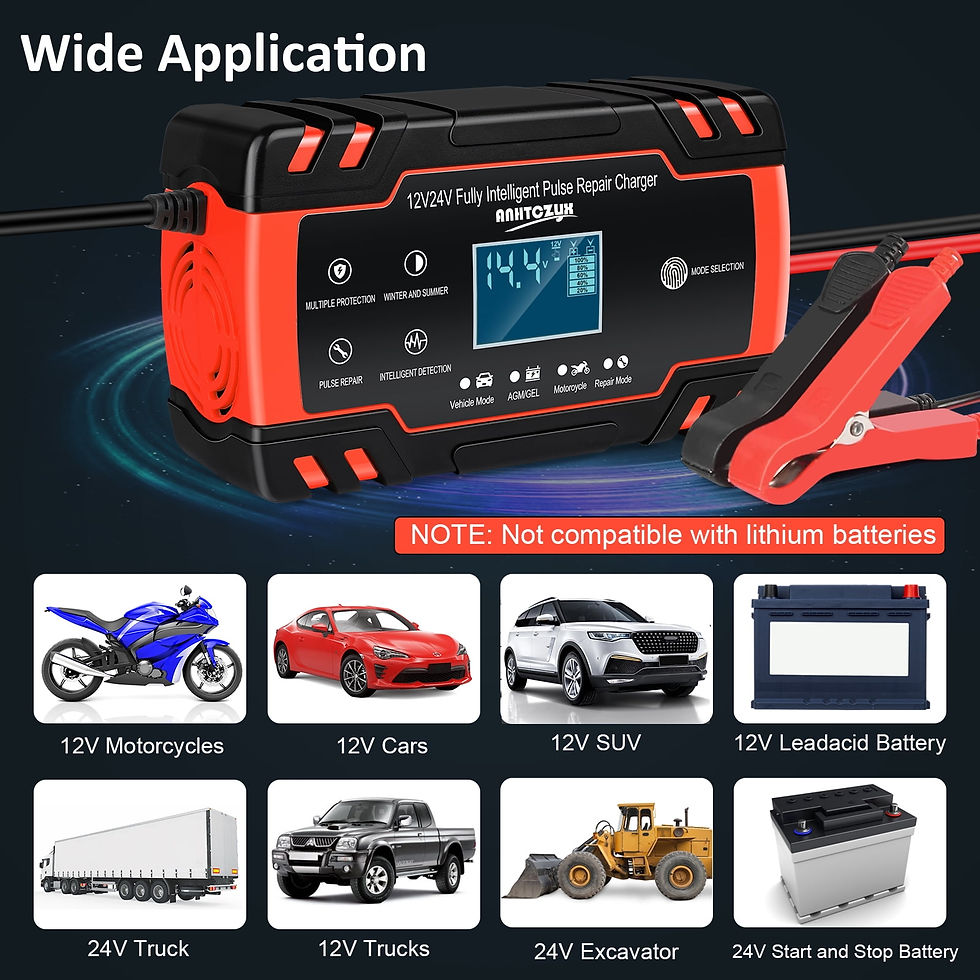

Wide range of applications: widely used for all kinds of lead-acid batteries. Latest design: 12V/8A and 24V/4A modes can be adjusted at will. Fast heat dissipation: mini cooling fan prolongs the life of the charger.
Intelligent digital display: automatic rotating data display, can display/current/voltage
Light weight: about 650g, easy to carry and carry.
Multiple protections: overcharge protection, overvoltage protection, overcurrent protection, overheating protection, low voltage protection, etc.
Product Specification:
Battery range: MOTO 6-30Ah & CAR 30-100Ah
Charging Current: 4~8A
Battery Type: All SLA batteries (Wet, MF, GEL, VRLA and Liquid Rich), AGM (EFB).
Material: ABS+PC
Operating Temperature: -10 to 45C (14 to 113F)
Weight: 650 grams
Dimensions: 23 x 13 x 6.5 cm
