8 / 6 Gang Way Blue / White Led Capacitive Touch Screen Switch Panel Box
Advanced Touch Screen panel: Adopt Capacitive sensing technology with blue indicator light display, stablity and strong anti-interference ability
High Sensitivity, Stablity & Strong Anti-Interference Ability, Easy & Flexible Installation, simply cut one hole
Input: DC 12V/24V, Output DC:12V 10A /24V 10A
Full Load:12V / Total Current does not exceed 60A;10 Amp rating per switch; Full Load:24V / Total Current does not exceed 40A;10 Amp rating per switch
Led Color : Blue On, White Off
Waterproof IP68,with 45 Label Stickers,just replace lable by your favor and needs
Built in resettable fuse: overvoltage protection, reverse polarity protection,and overcurrent protection
Touch Screen Panel Size : 8 gang 130.0 x 80.0mm; 6 Gang 100.0 x 80.0mm
Circuit Control Box Size: 8 gang 175.0 x 84.72mm; 6 Gang 135.0 x 85.0mm
Cutting Hole Size ：please refer to the following pictures
Suit for car / boats / yachts / caravans...
How To Install ?
 1. Cut one hole on dashboard,
2. Connect Touch Screen Panel with control box by using the provided flat cable,
3. Connect the device or application positive to the pin.
Package Contents
1x Touch Screen Panel
1x Circuit Control Box
1x 15 Pin VGA Cable
1 x 3M Double Sided Adhesive
2 x Power Input Wire
8 x Power Output Wire ( 6 Gang has 6 wires )
2 x (M4*12mm) Stainless Steel Screws
4 x ( M4*45mm) Stainess Steel Screws

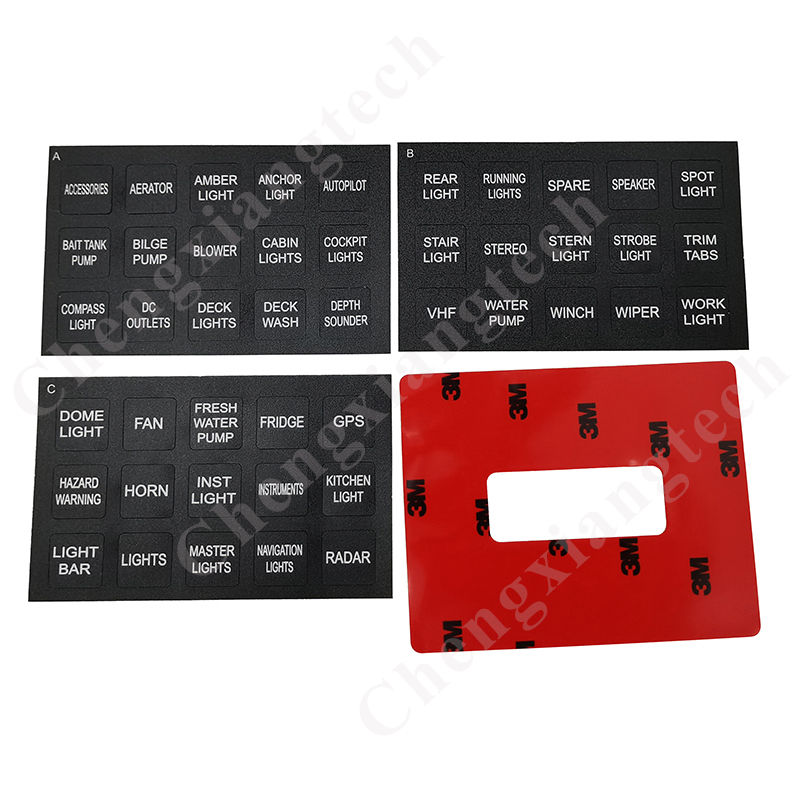

45 x Label Stickers
8 Gang Install Size
6 Gang Install Size
