12V Amber Led Push Switch For Toyota
It has a face surface size of 32.5 mm x 22 mm and uses the original mounting hole of the vehicle. Please Check your car switch sizing before buying. Thanks !!!
Black hard surface rocker, Laser etched Legend
Led: Orange
Rated at 3Amp 12V
High quality single pole single throw push switch
Switch Operations: ON OFF,  (ON) OFF

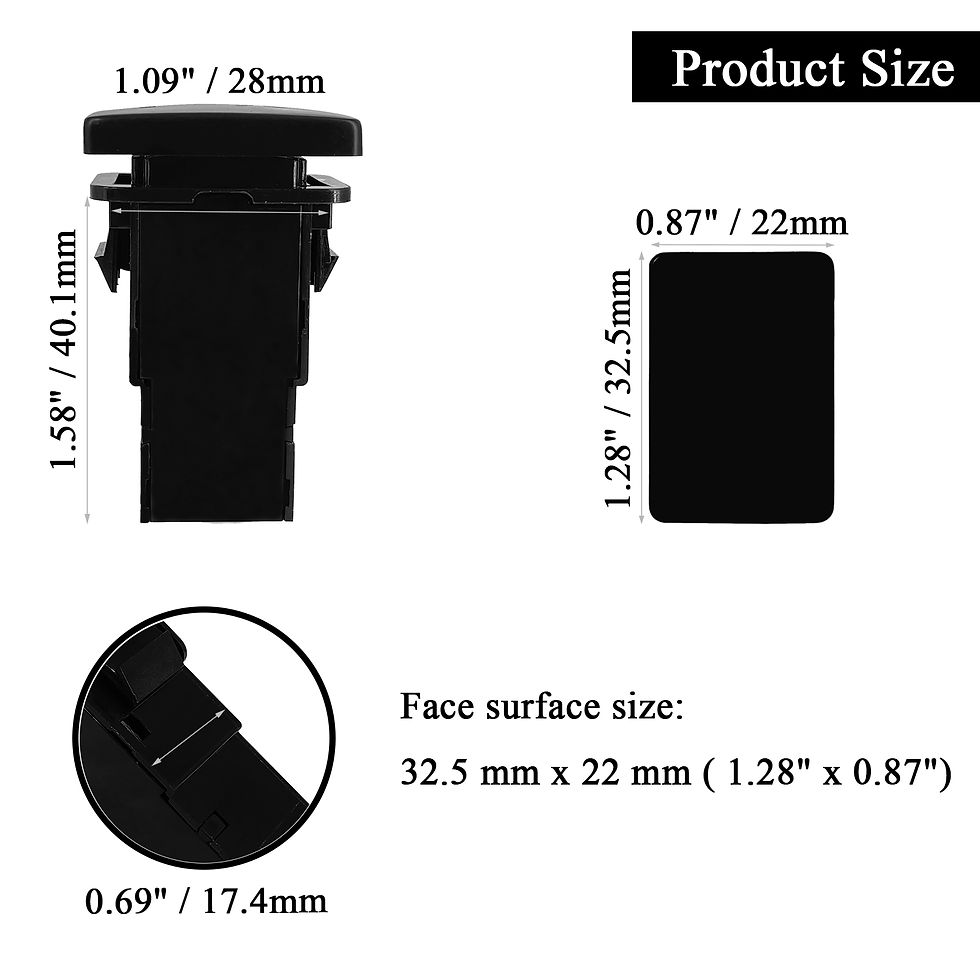

Face surface size: 32.5 mm x 22 mm ( 1.28" x 0.87"), Uses the original mounting hole of the vehicle
Wiring supplied with switch
Upper light is ON when the switch is pressed IN; Lower light can be wired to separate dash light circuit
These switches are an aftermarket switch that locks into your existing panel super easy to install in less than 10 min's
All symbols are Laser etched directly onto the switch face using modern high Tech laser engraving equipment to ensure long image life.
 This Switch Suits the following models : Additional vehicles that are not listed may be suitable for these switches. Please Check Sizing
For Toyota Prado 150 Series 2010 - Current
For Toyota Prado 200 Series 2008 - Current
For Toyota Landcruiser 200 Series 2008 - Current
For Toyota RAV4 2006 - 2011
For Toyota Hilux GUN Series 09/2015 - Current
For Toyota HiAce 2014 - Current
For Toyota Sequoia 2008-2016
Toyota Highlander 2008-2016
Toyota Tacoma 2012-2016 Center ONLY
Toyota Tundra 2008-2016
Toyota 4Runner 2010-2016
Toyota Yaris 2008
Wiring Diagram
â‘  Green Wire: Connect from your source with an inline fuse
â‘¡Red Wire-1: Connect to your replay or accessories
â‘¢Red Wire-2: Normally connected to dash light circuit to be ON when your dash lights are ON
â‘£Black Wire: Connect to Ground
