ANCEL BST60 Car Battery Tester 12V 100-2000CCA Battery System Analyzer Cranking Circuit load Quick Test Car Battery Tool
ANCEL BST60 12V Car Battery Tester is able to effectively analyze and read important car data such as voltage, Battery Power Test and charge status. It provides accurate results, calculates the battery aging extent, allowing for a quicker, more precise car repairing.
It provides techs or DIYer with a quick, simple and cost-effective solution to know the battery's charging status better , check the battery's health and detect faults.
ANCEL BST60 Functions:
1. Test all 12V vehicle starting lead-acid batteries.
2. Show real-time voltage and battery charge with the result of LOW/MID/FULL.
3. Test charging system with the result of LOW/OVER/CHARGE, and display the charging voltage in real time.
4. Two options available for testing:
Directly plug into the vehicle cigarette lighter socket.
Connect the battery terminals with attached alligator clips.
5. Protection of reverse connection and over current, with fuse built-in.
Battery Test:
1. Keep the engine off.
2. Connect the tester to the battery through alligator clips or cigarette lighter test line, and the battery voltage value will be shown on the screen.
※ Test with cigarette lighter socket: please insert the cigarette lighter of the tester into 12V DC cigarette lighter socket of the vehicle.
※ Test with alligator clips: please connect the red alligator clip of the device to the positive pole (+) of the battery, and connect the black alligator clip to the  negative pole (-) of the battery.
3. Turn off all electrical equipments and keep it for a while, and wait for the voltage to stabilize.

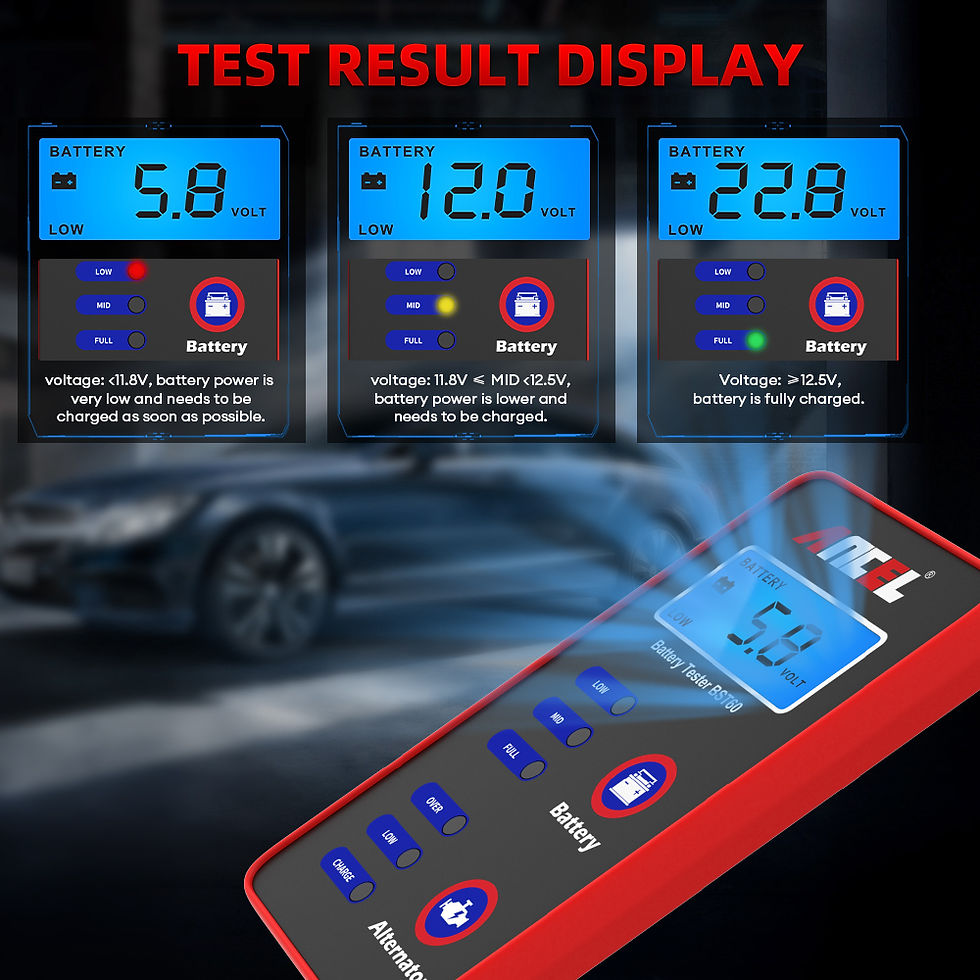

4. Press the “Battery” button to enter the battery test function. At this time, the screen shows the voltage value and the test result.
※ If the “LOW” light is on, it means that the battery power is very low and needs to be charged as soon as possible. Voltage: <11.8V
※ If the “MID” light is on, it means the battery power is lower and needs to be charged. Voltage: 11.8V ≤ MID <12.5V
※ If the “FULL” light is on, it means the battery is fully charged. Voltage: ≥12.5V
Charging Test:
1. Please keep the vehicle stationary, increase the engine speed (RPM) to 2500r/min or above, and turn off all electrical equipments, including
headlights, air-conditioning fans, glass heating, etc.
2. Press the “Alternator” button to enter the charging system test function. At this time, the screen shows the charging voltage value and the test result.
※ If the “OVER” light is on, it means that the generator output voltage is higher. Voltage: ≥15V.
※ If the “LOW” light is on, it means that the generator output voltage is lower. Voltage: <13.5V.
※ If the “CHARGE” light is on, it means the charging system is normal. Voltage: 13.5V ≤ CHARGE<15V.
Wide Range of Application of ANCEL BST60 Battery Tester
ANCEL BST60 can test 12V batteries, suitable for a variety of common models and equipment. (For Motorcycle, Car,SUV, Light Trucks,  Boat batteries)
ANCEL BST60 supports multiple battery types:Regular Flooded ,AGM,GEL,EFB
★Battery Service Station
★Car Garage/Warkshop
★Auto/Battery Manufanctures
★DIY Users
How to Use the BST60 Alternator？
1. Please keep the vehicle stationary, increase the engine speed (RPM) to 2500r/min or above,
and turn off all electrical equipments, including
headlights, air-conditioning fans, glass heating etc.
2. Press the “Alternator” button to enter the
charging system test function. At this time, the
screen shows the charging voltage value and
the test result
Intimate Protection of ANCEL BST60
1. Plug and Play
Just connect the BST60 and the battery to use, plug and Play, the BM550 device does not need to be charged
2. Polarity Reverse Protection
When you accidentally reverse the positive and negative poles, it can protect the battery and battery testing tool from damage.
Two options available for testing Comprehensive battery diagnosis, quick test and accurate test with clearresults.
1. Plug and Play
Just connect the BST60 and the battery to use, plug and Play, the BM550 device does not need to be charged
2. Polarity Reverse Protection
When you accidentally reverse the positive and negative poles, it can protect the battery and battery testing tool from damage.
Parameters of ANCEL BST60
Product Name： Battery & charging system tester
Input Voltage： 6V-25V
Display: LCD screen with backlight
Protection: Built-in fuse and reverse connection protection
Working Temperature: -20 °C ~ 70 °C (-4 °F ~ 158°F )
Storage Temperature:  -30 °C ~ 80 °C (-22 °F  ~ 176°F )
