ANCEL S200 AUTOMOTIVE SMOKE MACHINE WITH 2024 UPGRADED HEAT TRANSFER TECHNOLOGY
Ancel S200 supports multi-system testing, especially EVAP system
EVAP System Test
Intake System Test
Exhaust Systems Test
Crankcase system test
Car Sealing Test
Fuel Tank System Test
Turbo System Test
Various Pipe Fittings Test
with a powerful pressure guage, easy to operate
1/2psi pressure gauge and smoke regulator which helps you control the smoke effect easily and allowing you to estimate the size of the leak by the change of the gauge value.It will specifically mark where the leakage is coming  from,improves the efficiency of diagnosis
How to use it?
Step1: Fill in 20ml baby oil to the detector (Baby oil is not included in the package);
Step2: Disconnect the pipe that needs to be connect with the detector;
Step3: Connect detector with DC12V battery,device starts to work;
Step4: The pipe will be filled with smoke,check the leak points.
2 kinds of modes: AIR model+Smoke mode
Air mode :First, use the air mode to directly measure the leak, and judge whether there is a leak by the pressure gauge value. If it is less than 0.5bar, it will inevitably leak. If it reaches 0.8bar and above, the pipeline tightness is very good.Then there is no need to waste baby oil
SMOKE MODE:After the air mode determines that there is a leak, use the smoke mode to find the leak.

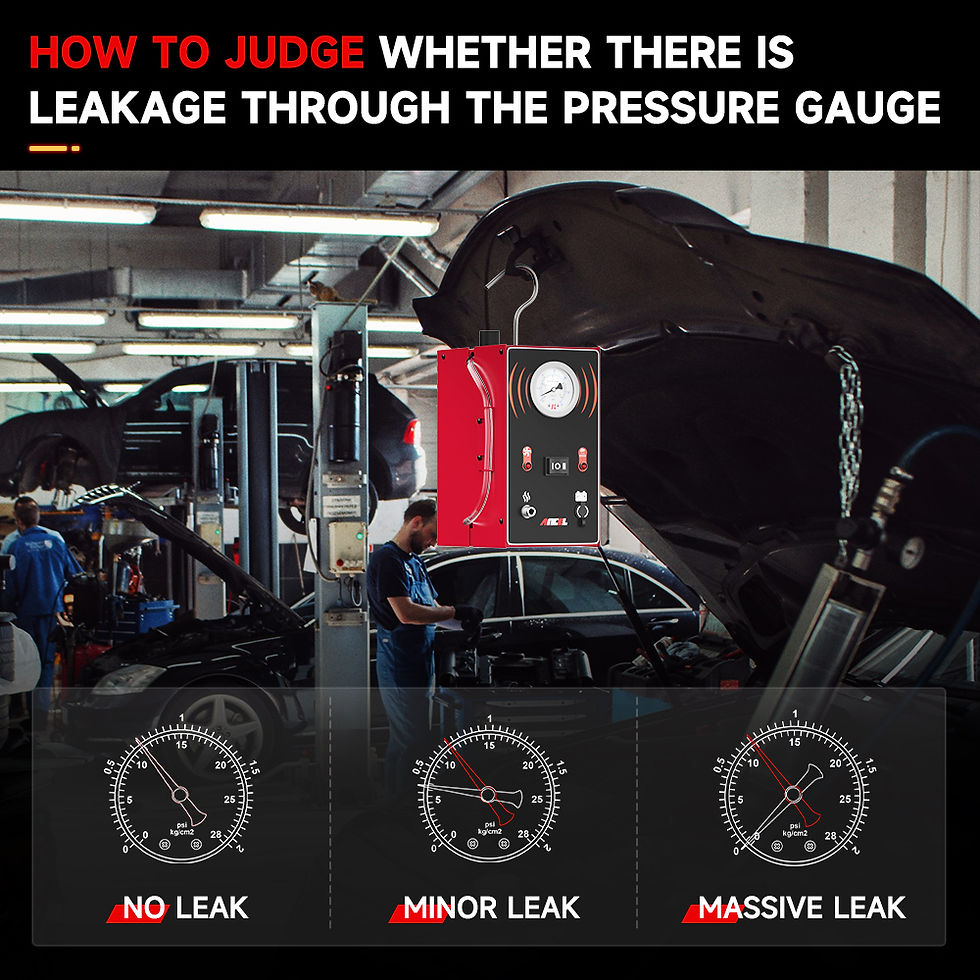

How to judge leakage- through the pressure gauge
NO Leak: When the value of the pressure gauge remains unchanged and the flow meter will read zero (ball at bottom of scale), it means that there is no leakage in the system.
Small Leak: When the value of the pressure gauge drops and the ball in the flow meter slowly fall to the bottom of the scale, it indicates a small leak in the system.
Massive Leak: When the value of the pressure gauge reaches zero and the flow meter ball never falls to the bottom of the scale, it indicates a large leak in the system.
Overheat & Anti-frost Protection
Overheat Protection
When the temperature of the device exceeds 75℃, power protection will be intelligently activated to turn it off.
Anti-frost Protection
The device can also work normally at -20℃.

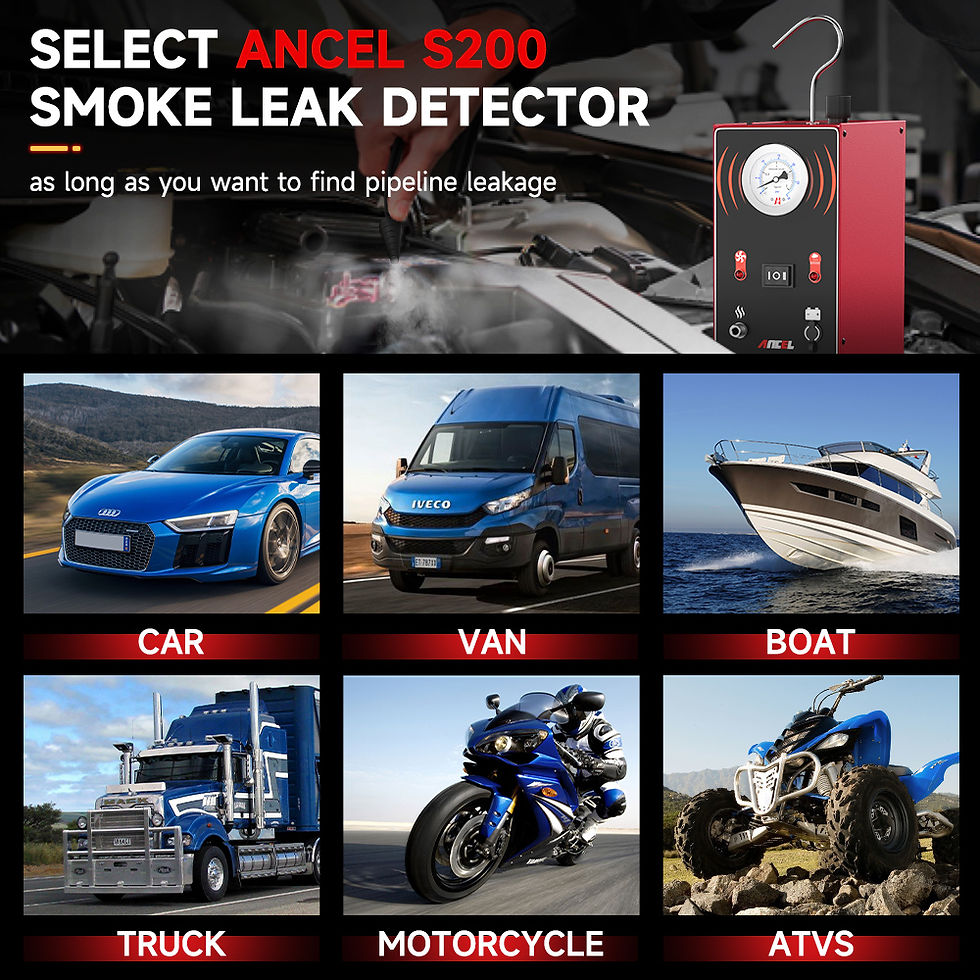

Wide Range of Applications
Specification
Power source:12V Fully Charged vehicle battery
Current:6A
Flow rate: <6 L/min
Pressure output:0.8-1.0 bar (0.8-14.5psi)
PACKIING LIST
