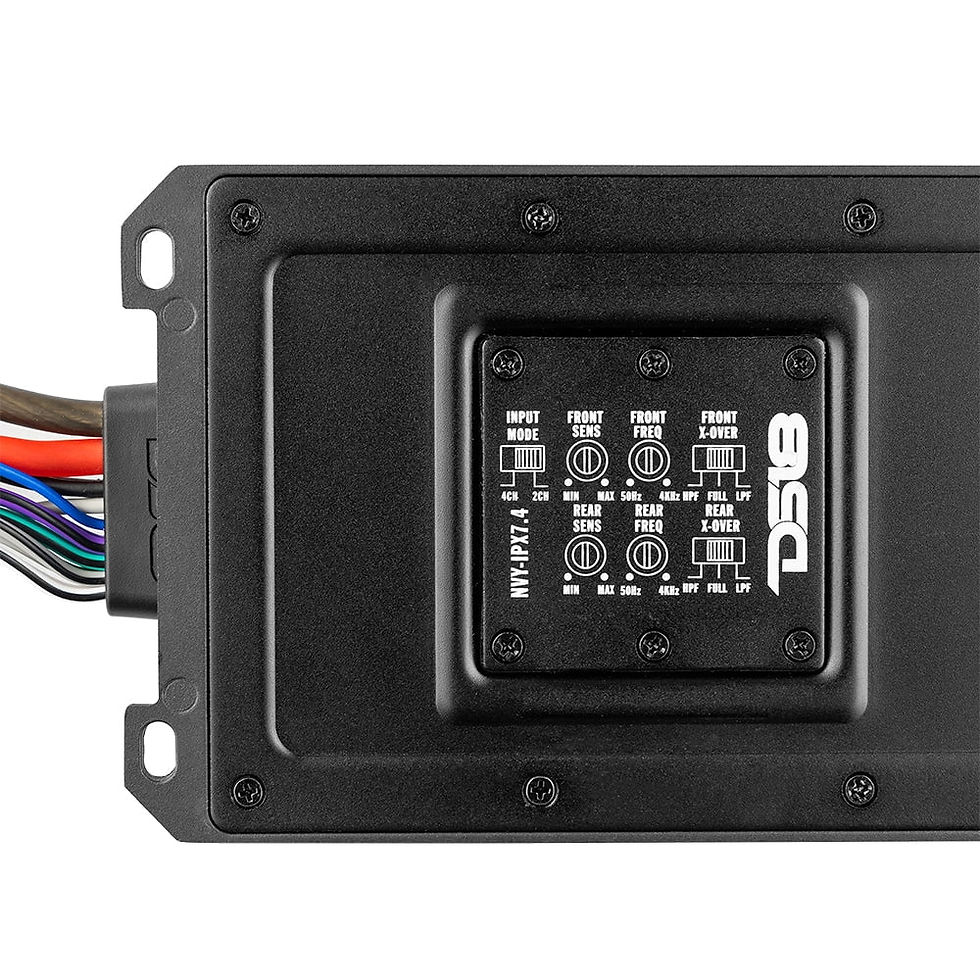

DS18 4Ch Marine & Powersports Amplifier Class D 1440W /w Fuse & Holder NVY...

DS18 4Ch Marine & Powersports Amplifier Class D 1440W /w Fuse & Holder NVY.IPX7

The NVY series was manufactured to put power back into your hands whether youre out on the great blue or maneuvering on the dirt path less traveled.Our latest amplifier added to this series has an IPX waterproof rating of IPX7, giving this fortified beast of a machine the ability to be submerged in water as deep as 1 meter for up to 30 minutes. It also has a 2 CH/ 4 CH input selector giving you complete control over how much power gets designated to each of your speakers.

Place this amplifier anywhere using our Direct Power harness design manufactured to give you creative control over where you get the wave making tunes on your marine vehicle.

Highlights:

- The included a marine grade fuse and fuse holder that is connected inline with your main power wire will help with ultimate protection against the elements.
- Latest Digital amplifier design with SMC technology.
- Submergible IPX7 Waterproof Rating
- UV, Salt and Fog protection.
- 2ch / 4ch Input Selector.
- Maximum output of 120W x 4CH bridged at 4-Ohms, 200W x 4CH at 2-Ohms, and 350W x 2CH at 4-Ohms.

This listing includes:
(1) DS18 4 Channel Marine & Powersports Amplifier NVY.IPX7.4

Installation and Mounting Hardware Included:
(2) Extra 30A Fuses (4 Total)
(8) Small Butt Connectors
(2) Large Butt Connectors
(4) Philips Head Screws
(1) Allen Wrench

Total Watts (Peak): 1440 Watts
RMS Power @ 4 OHM: 4 x 120 Watts
RMS Power @ 2 OHM: 4 x 200 Watts
RMS Power @ 4 OHM Bridge: 2 x 350 Watts

AUDIO SPECIFICATIONS:
Frequency Response: 20Hz ~ 20KHz
Signal To Noise Ratio 1W @ 4 Ohm: >90dB
Efficiency @ 4 OHM: 94%
Input Impedance: >20K Ohms
Channel Separation: >-70dB
Total Harmonic Distortion (THD): 0.1%
Low Level Input Range: 270mV ~ 5.6V
Selectable X-over: HPF/FULL/LPF
X-over Filter Range: 50Hz ~ 4KHz

FEATURES:
Amplifier Class: Digital (D)
Amplifier Type: Full Range Marine Amplifier
Number Of Channels: 4
Minimum Impedance: 2 Ohm / Ch (4 Ohm Bridge)
Led Indicator: Protection (Red) | Power (Blue)
Power Input Size: 8 Ga
Fuse Size: 2 x 30A
Thermal Protection: Yes
Over-Load Protection: Yes
Short Circuit Output Protection: Yes
Voltage Input Protection: Yes (9.5 ~ 16V)
Body Color | Finish: Black Anodize
2CH | 4CH Input Selector: Yes
Waterproof Rating: IPX7
UV / Salt / Fog Protection: Yes
Direct Power Harness Design: Yes
Surface Mount Component Technology: Yes
Marine Grade Fuse Holder: Yes

DIMENSIONS:
Overall Length: 10 (253mm)
Overall Wide: 4.5 (116mm)
Overall Height: 1.9 (48.5mm)
Heatsink Length: 8.5 (216mm)
Gross Single Unit Weight: 4 Lbs
