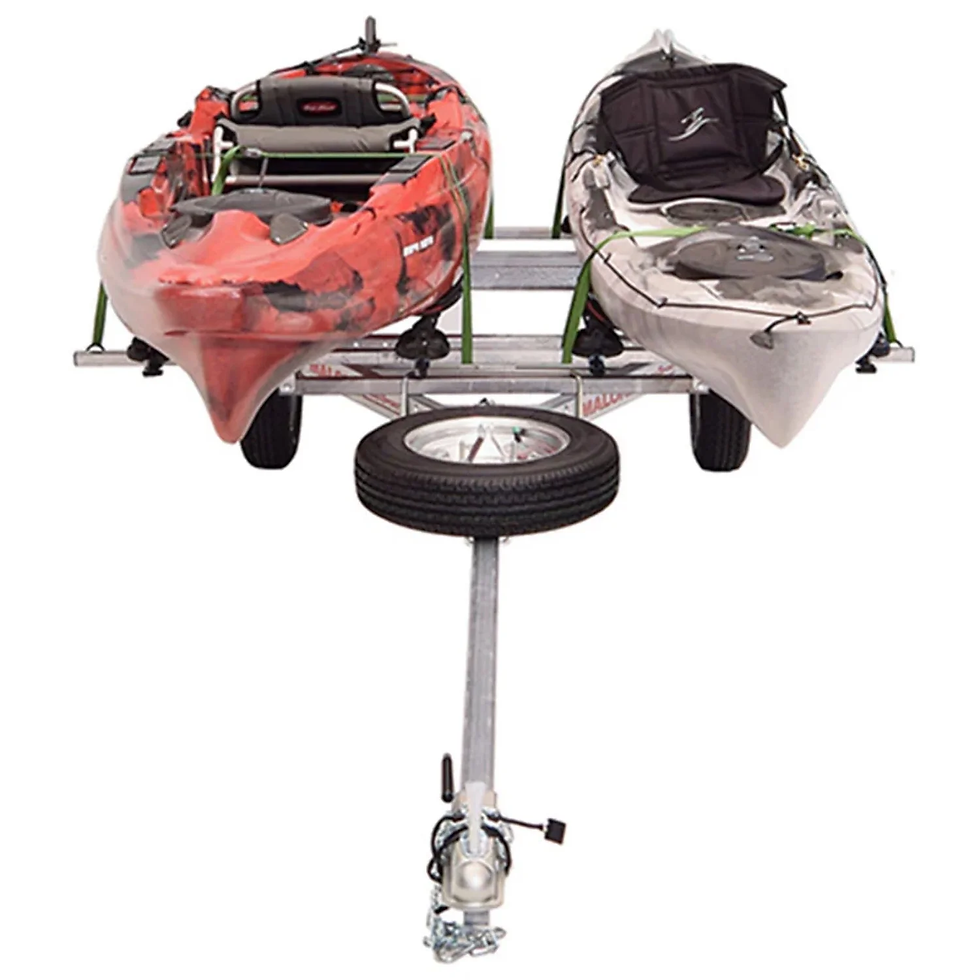

The Malone MicroSport LowBed SaddleUp Pro Trailer package easily loads and transports kayaks from your driveway to the water’s edge. The load bar support system extensively lowers the overall bar height to minimize your need to lift. LowBed trailers are the perfect combination of affordability and quality.


Pre-assembled hubs for a clean and simple installation

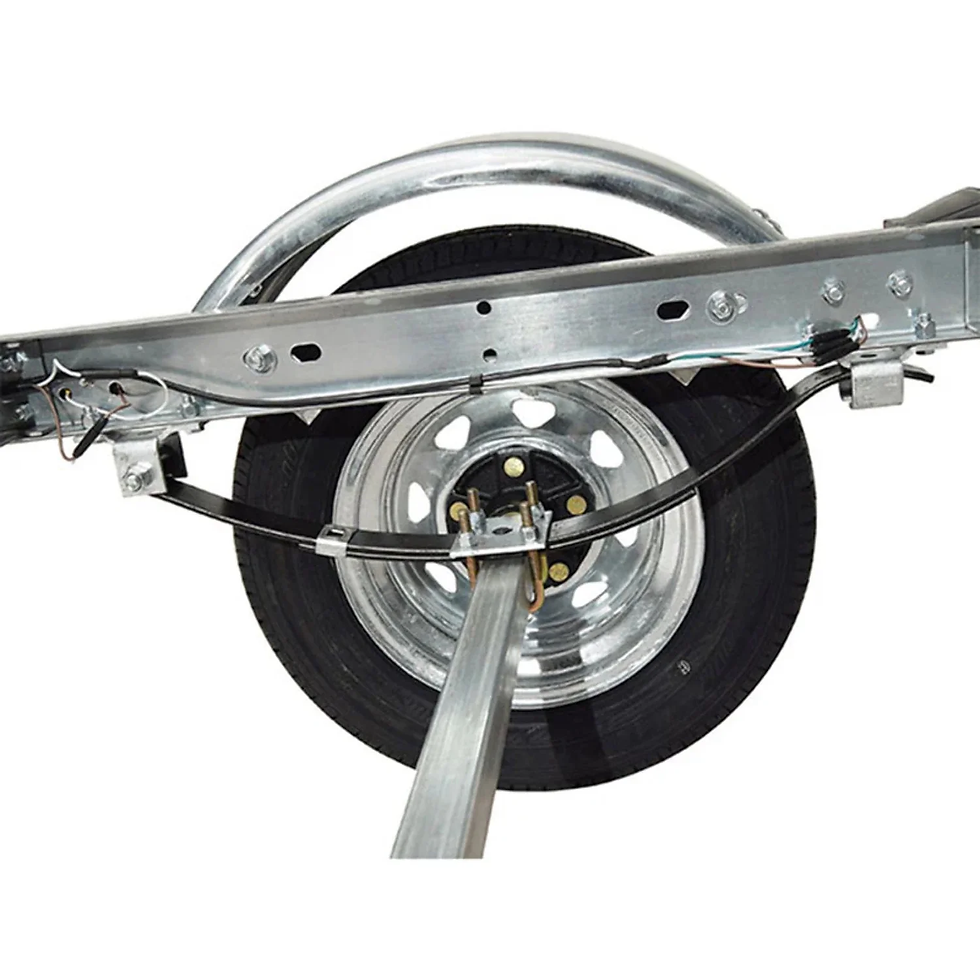

Galvanized slot wheels with sealed marine-grade bearings

Reinforced steel tongue can transport boats up to 20 feet in length

Steel rectangular load bars with D-ring tie-down points fit most manufacturer’s attachments

SaddleUp Pro cradles fit most kayaks, including those with a center keel or pontoon-style bottom

High-speed DOT-approved wheels can handle highway travel

Marine-grade galvanized steel construction for years of service

Typically assembles in 3-4 hours with standard tools, complete instructions included

Made in the USA

Kayaks not included

5-year manufacturer warranty against any manufacturing and material defects


MicroSport LowBed Trailer:




Construction

11-gauge pre-galvanized steel



Weight Capacity

800 lbs.



Maximum Recommended Kayak Length

20'



Megawing Cradle Weight Capacity (Per Set)

150 lbs.



Crossbar Length

78"



Crossbar Spread

44 - 63"



Crossbar Height

22"



Hitch Ball Size

2" Class II



Wiring Harness

Flat 4 connection



Tongue Length

8'



Tongue Height

18"



Tongue Weight

25 lbs.



Wheel Size

12"



Recommended Tire Pressure

35 to 40 PSI



Axle Length

54"



Axle Rating

1800 lbs.



Trailer Dimensions

159" L x 78" W



Trailer Width (Without Crossbars)

55"



Frame Width (Width With Fenders)

40"



Trailer Weight

197 lbs.




SaddleUp Pro Kayak/SUP Carriers:




Load Capacity

1 kayak / 1-2 SUP boards



Weight Capacity

90 lbs.



Dimensions

5" long x 5" wide x 9" tall



Weight

9 lbs.



Construction

Nylon frames with high-density TPR rubber padding




What’s In The Boxes (13 Cartons Total):


1 MicroSport LowBed trailer (assembly required)

2 High-speed wheels

1 Reinforced steel tongue

2 MPG110 SaddleUp Kayak/SUP Carrier sets

1 Spare tire with locking attachment

Instruction manual & registration documents
