Product Description
SBR Linear Guide Rail

SKYSHALO presents an exceptional SBR linear guide rail that guarantees superior performance. This remarkable guide rail set consists of 2 guide rails and 4 slide blocks. Crafted with utmost precision, the aluminum guide rails boast impeccable hole diameter and distance. The SBR slide blocks are ingeniously designed with ball bearings, ensuring seamless and unhindered movement. With a wide range of specifications available, you can easily find the perfect fit for your requirements.

Effortlessly Handle Pressure
Experience the ultimate in pressure handling with the SKYSHALO linear bearing. Its robust all-metal structure ensures a tight lock on the linear shaft, providing exceptional bearing capacity.

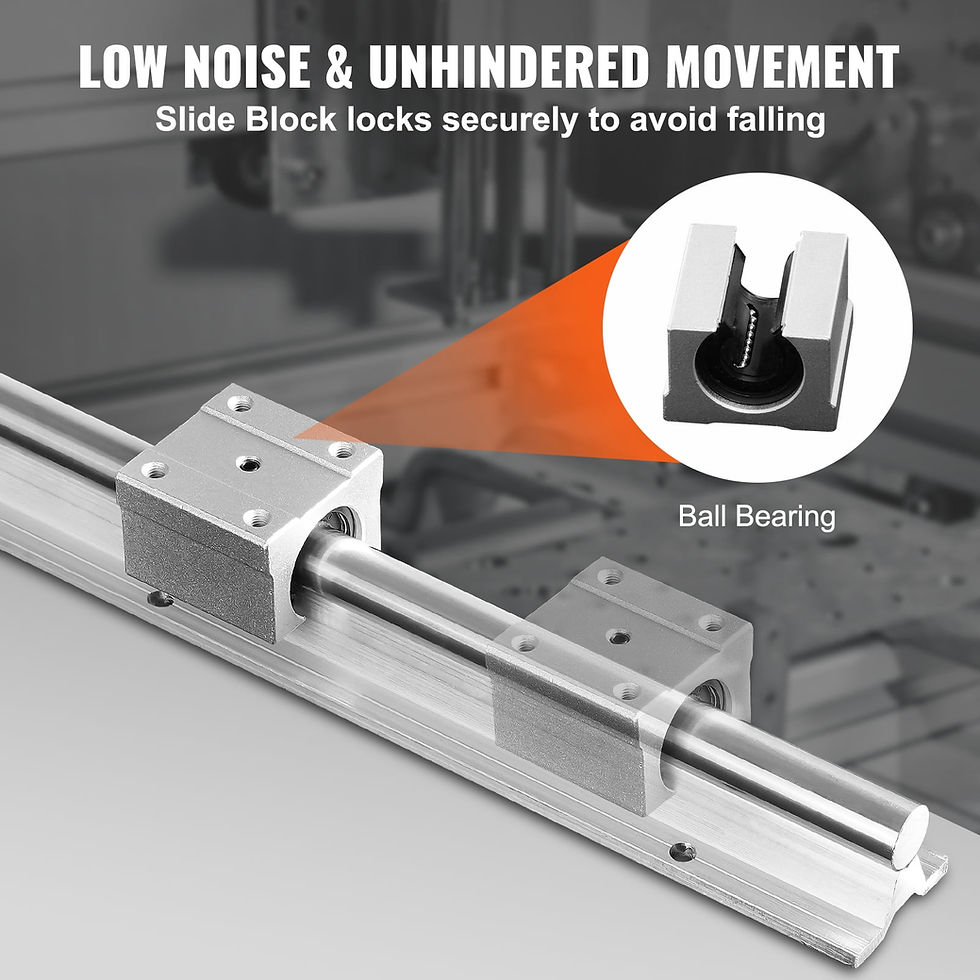

Seamless Sliding, No Interruptions
Enjoy smooth and uninterrupted sliding with the SKYSHALO aluminum SBR slide block. Equipped with built-in ball bearings, it effortlessly glides for long-term stability and reliable operation.
Unparalleled Precision
Achieve unmatched precision with the SKYSHALO linear motion guides. Featuring accurate hole distance, hole diameter, and standard shaft diameter, it allows for precise installation of your equipment.
Versatile Applications
The SKYSHALO linear rail kit finds its place in a wide range of high-load automation equipment and DIY projects. Whether it's DIY CNC engraving machines or lathes, it's the perfect choice.

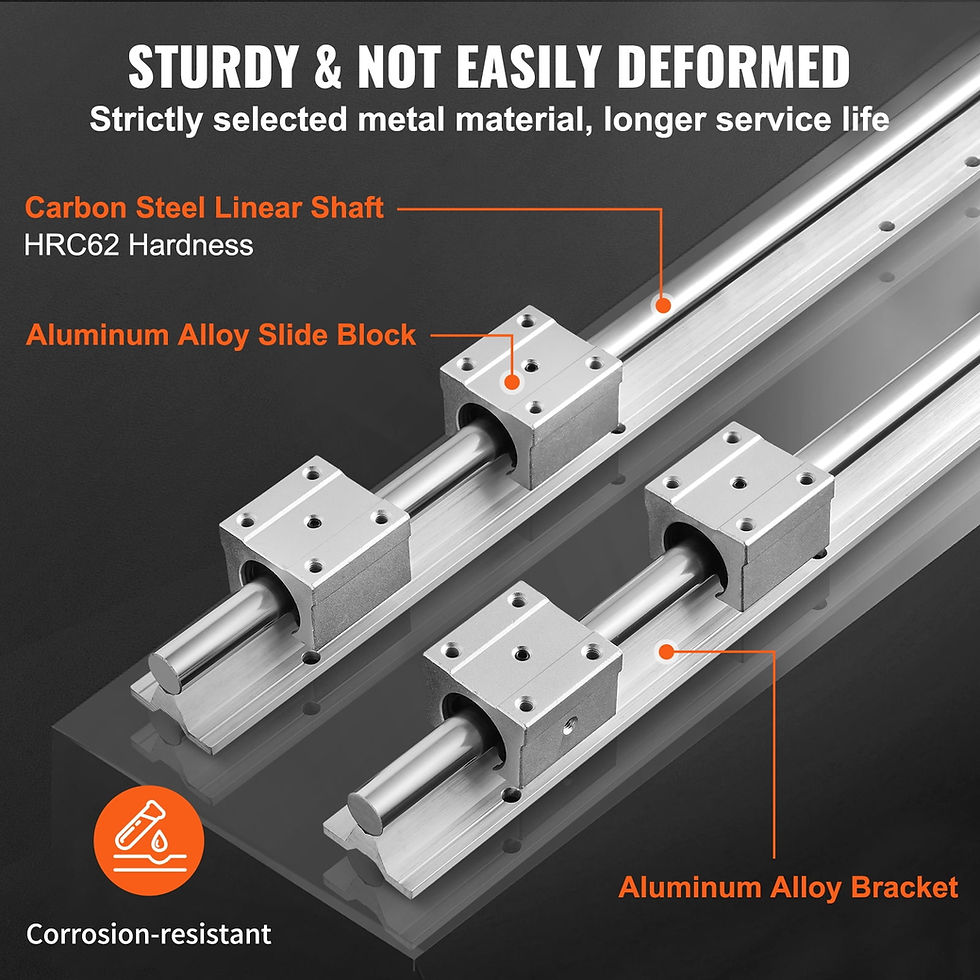

Unyielding Corrosion Resistance
With its chrome-plated surface, the linear shaft of the SKYSHALO linear motion slide rails is impervious to corrosion. It thrives in humid environments and offers excellent heat resistance.
Effortless Installation
Make installation a breeze with the SKYSHALO linear guide rails. They come pre-assembled with the shaft, support, and sliding blocks, and feature mounting screw holes for easy installation and connection. Adjust the sliding bearing tightness effortlessly using the side screw hole of the block.
Specifications
Model Number: SBR12-C 1000L
Slide Block Model: SBR12UU
Guide Rail Length: 39.4 in/1000 mm
Shaft Diameter: Φ12 mm
Dynamic Load (per block): 372 N
Static Load (per block): 549 N
Material: High Carbon Steel & Aluminum
Mounting Hole Distance A: 1.1 in/28 mm
Mounting Hole Distance B: 1 in/26 mm

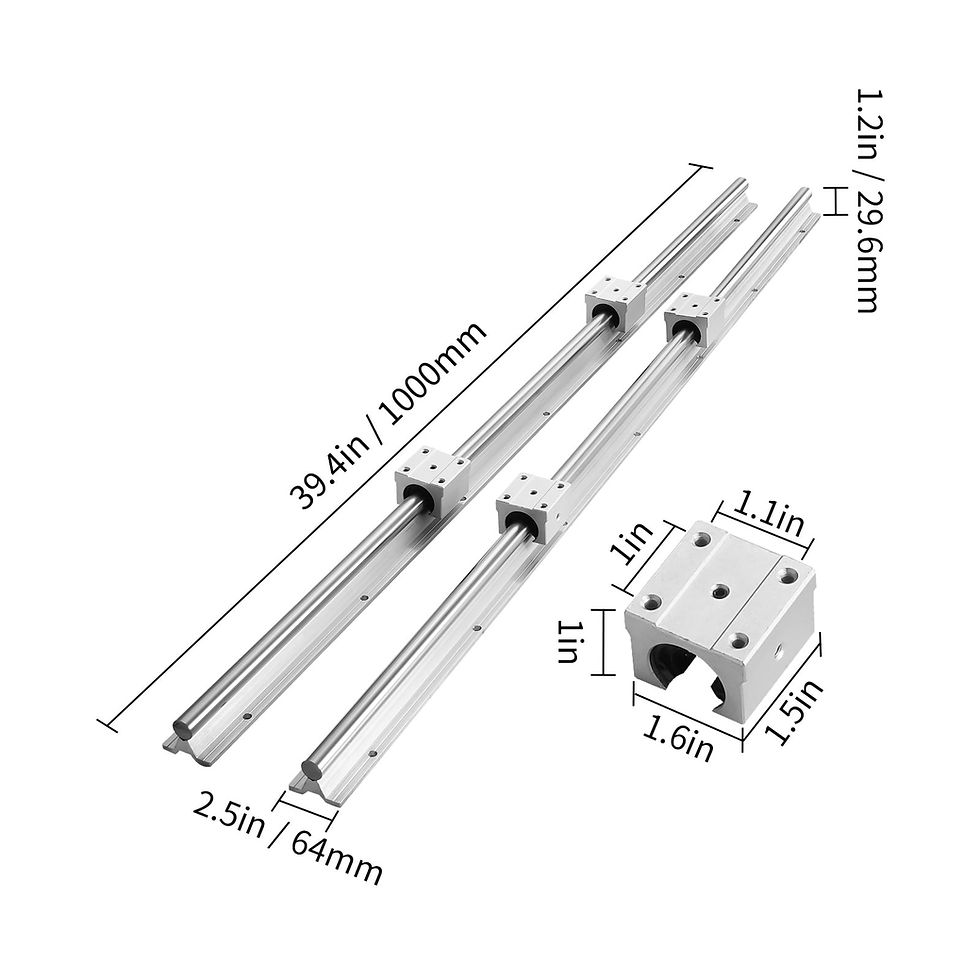

Slide Block Size(L x W x H): 1.5 x 1.6 x 1 in/39 x 40 x 27.6 mm
Product Dimensions(L x W x H): 39.4 x 2.5 x 1.2 in/1000 x 64 x 29.6 mm
Package Size(L x W x H): 43.3 x 2.6 x 3.9 in/1100 x 65 x 100 mm
Net Weight: 7.5 lbs/3.4 kg
Package Content
2 x SBR12 1000mm Linear Guide Rails with Supports
4 x SBR12UU Sliding Blocks
